IE5 Permanent Magnet Synchronous Integrated Motor: Empowering a New Era of Green and Energy-Efficient Industrial Solutions

Amid the implementation of China's dual-carbon policy and accelerated energy-saving upgrades of industrial equipment, electric motors— serving as the core power source for pumps, fans, air conditioners, and HVAC systems— have made energy consumption control crucial for enterprises to reduce costs and improve efficiency. Currently, the widespread adoption of IE5 permanent magnet motors faces constraints due to high procurement costs from imported brands, elevated domestic R&D and manufacturing expenses, premium pricing, and challenges in industrial-scale production. Furthermore, enhancing industrial energy efficiency and phasing out high-energy-consuming equipment have become essential industry requirements.

In the era of energy conservation and carbon reduction, Lingxiao Pump Industry leverages 49 years of expertise in motor manufacturing to introduce the new-generation IE5 series – an integrated, high-efficiency, permanent-magnet synchronous motor with eight core advantages, driving a new phase of green and energy-efficient industrial transformation.

Ⅰ. Established Brands and New Technologies

For 49 years, Lingxiao Pump Industry has been dedicated to the research, development, and manufacturing of motors and water pumps, establishing specialized production lines for its product series with an annual capacity of 8 million units. The company aims to achieve an annual output of 15 million electric pumps, ensuring superior product consistency and enhanced cost-effectiveness. It operates three modern production bases and maintains a sales network covering 105 countries and regions worldwide.

In terms of technology development, the company has established a research and development team led by professor-level senior engineers and senior technical experts, providing core support for continuous product iteration. The laboratory, with a total investment exceeding 40 million yuan, has been accredited by CNAS (China National Accreditation Service for Conformity Assessment), and its testing equipment and technical capabilities meet national standards. Additionally, this laboratory serves as an accredited facility for UL (USA) and TUV (Germany), enabling precise compliance with European and American market standards and significantly reducing international certification timelines.

Over five years, Lingxiao Pump Industry's technical team dedicated itself to mastering the core technologies of permanent magnet integrated motors, optimizing magnetic circuit topology, electromagnetic designs, and intelligent control algorithms, while addressing industry challenges such as heat dissipation, noise reduction, and energy efficiency improvement. They ultimately achieved a technological breakthrough and successful industrialization of the MEG series of permanent magnet synchronous integrated motors, which meet diverse motor and pump application requirements across multiple sectors.

Ⅱ. IE5 Permanent Magnet Synchronous Integrated Motor MGE Series: Eight Core Advantages

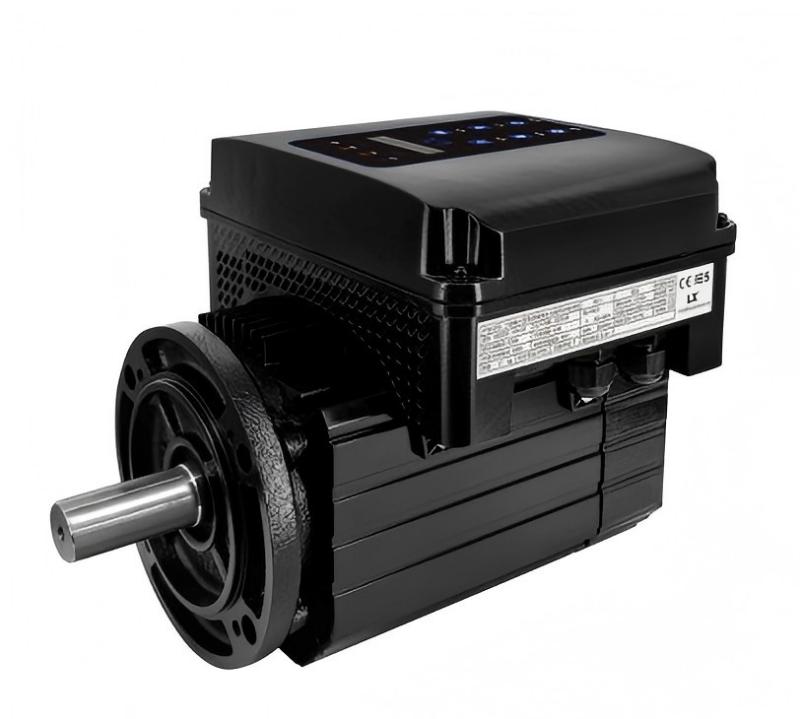

1. Higher efficiency: IE5 with super-grade 1 energy efficiency, leading industry standards under all operating conditions. The product complies with the GB30253-2024 standard, achieving IE5-level efficiency indicators. With a power rating ranging from 0.37 to 37 kW, it has been registered as Grade 1 in the China Energy Efficiency Network.

2. Enhanced Energy Efficiency: Reduces power loss at the source, resulting in significant long-term savings on electricity bills. The product features built-in high-performance permanent magnets that completely eliminate excitation losses typical of conventional motors, ensuring low energy consumption under both light and full loads – enabling continuous operation 24/7 without power consumption concerns. Using the 22 kW model as an example, compared to a synchronous motor of equivalent power, it saves over 10,000 kWh annually, with the investment cost recovered within just over a year; subsequent electricity savings represent net profit.

3. Enhanced stability: Low temperature rise and reduced failure rate ensure continuous, reliable operation around the clock. Through comprehensive improvements in electromagnetic design, structural optimization, and manufacturing precision—including refinement of magnetic circuit topology, suppression of high-frequency harmonics, enhancement of vibration-damping structures, and precise assembly—the system effectively mitigates high-frequency vibrations and noise, resulting in quieter and more reliable performance.

4. Enhanced Intelligence: Integrated frequency conversion drive with built-in digital control capabilities. Equipped with a dedicated smart controller that employs a zero-drag vector control algorithm to automatically detect pump load variations and precisely regulate speed, torque, and power. Supports intelligent soft start/stop (eliminating water hammer effects) and constant-pressure closed-loop control, featuring integrated energy-saving logic for demand-based frequency conversion to reduce consumption.

5. Reduced weight: Compact size and significant weight reduction save installation space. At the same power level, permanent magnet motors are 25%–40% lighter than asynchronous motors (the exact ratio varies by power rating).

6. Outstanding energy-saving performance: Compliant with the dual-carbon policy. The entire system passes EMC testing and fully meets all technical, regulatory, and delivery requirements specified in the project tender.

7. Mutability during installation: It is fully interchangeable with asynchronous motors. The flange dimensions strictly comply with IEC 60072-1:2022 and GB/T 4772.1-2025 standards. This eliminates the need to modify equipment mounting structures, transmission components, or wiring configurations, enabling immediate deployment for rapid energy savings and efficiency improvements.

8. Superior cost-effectiveness: High efficiency at an affordable price. Controllable initial investment with optimal total lifecycle costs, and premium specifications without excessive pricing. Permanent magnet motors deliver outstanding performance at reasonable prices, significantly reducing overall user costs and offering the best value-for-money among motors of similar class – truly delivering top-tier performance-to-price ratio!

Fortunately, the MGE series permanent magnet motors independently developed by Lingxiao Pump Industry have been applied in vertical multi-stage pumps and have obtained national patent certification as an invention patent, titled "A Permanent Magnet Motor for Vertical Multi-Stage Pumps".

III. Empowering a New Era of Green and Energy-Efficient Industrial Development

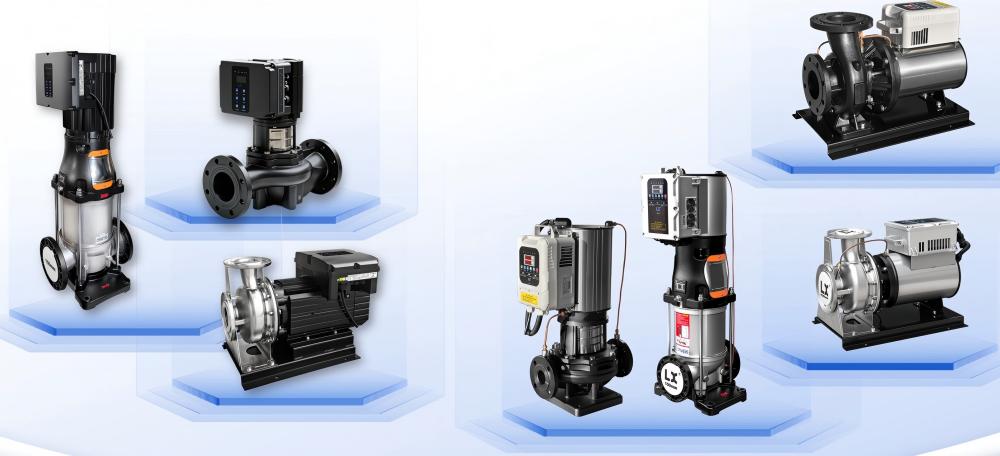

Intelligent permanent magnet variable-frequency centrifugal pumps fall into two main categories: fully enclosed air-cooled models and water-cooled models, both equipped with IE5 permanent magnet synchronous integrated motors. These pumps find extensive applications in building water supply systems, industrial pressurization, and circulating water replenishment across residential, commercial, and industrial sectors, supporting prolonged continuous operation and making them the ideal choice for energy-efficient equipment upgrades.

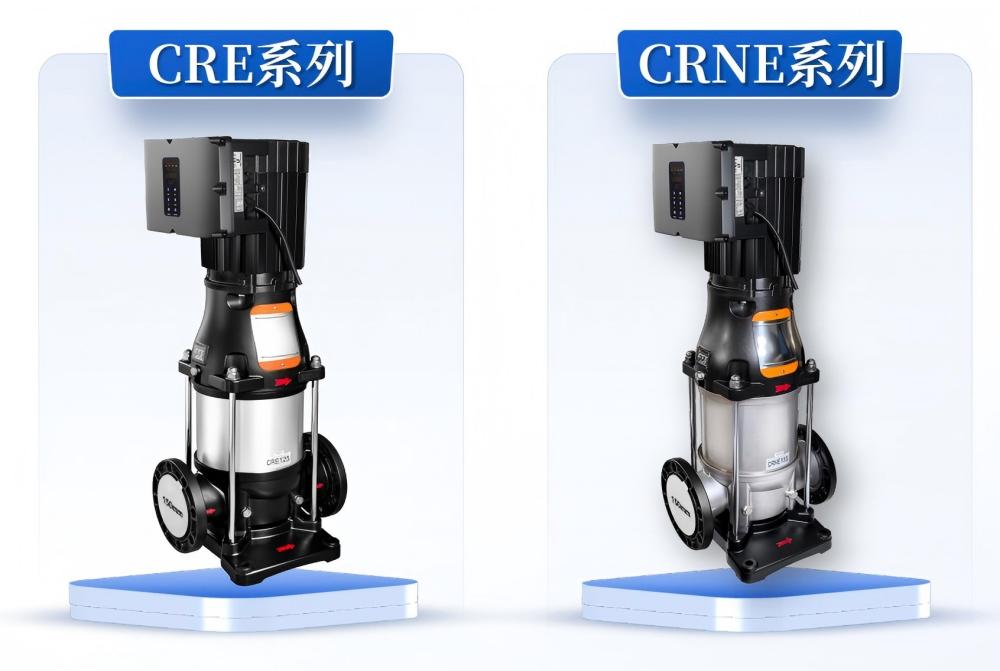

1. CRE/CRNE series intelligent permanent magnet variable-frequency vertical multi-stage pumps: featuring integrated pump, motor, and controller. The CRE model is made of cast iron (QT500-7 ductile iron with cathodic electrophoretic corrosion protection), while the CRNE model uses precision-cast stainless steel (SUS304/316). With rated power ranging from 5.5 to 110 kW, flow rates of 95–155 m³/h, and head capacities of 15–261 m, these pumps are suitable for building water supply and industrial pressurization applications.

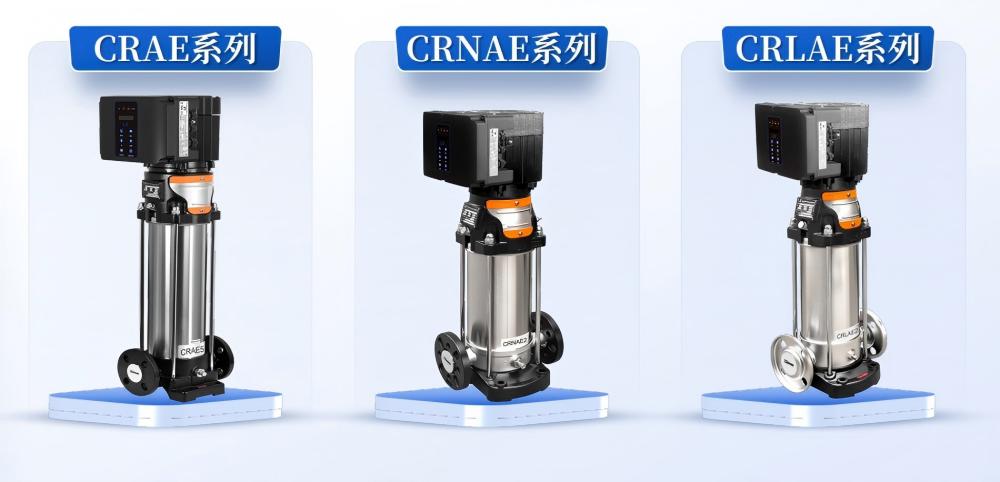

2. The CRAE/CRNAE/CRLAE series of intelligent permanent magnet variable-frequency vertical multi-stage pumps: The A-series model features an optimized design and is available in three variants—CRAE (cast iron), CRNAE (precision cast stainless steel), and CRLAE (stamped stainless steel)—with power outputs ranging from 0.37 to 110 kW, flow rates of 1–320 m³/h, and head capacities of 11–250 m, delivering both high performance and excellent cost-effectiveness.

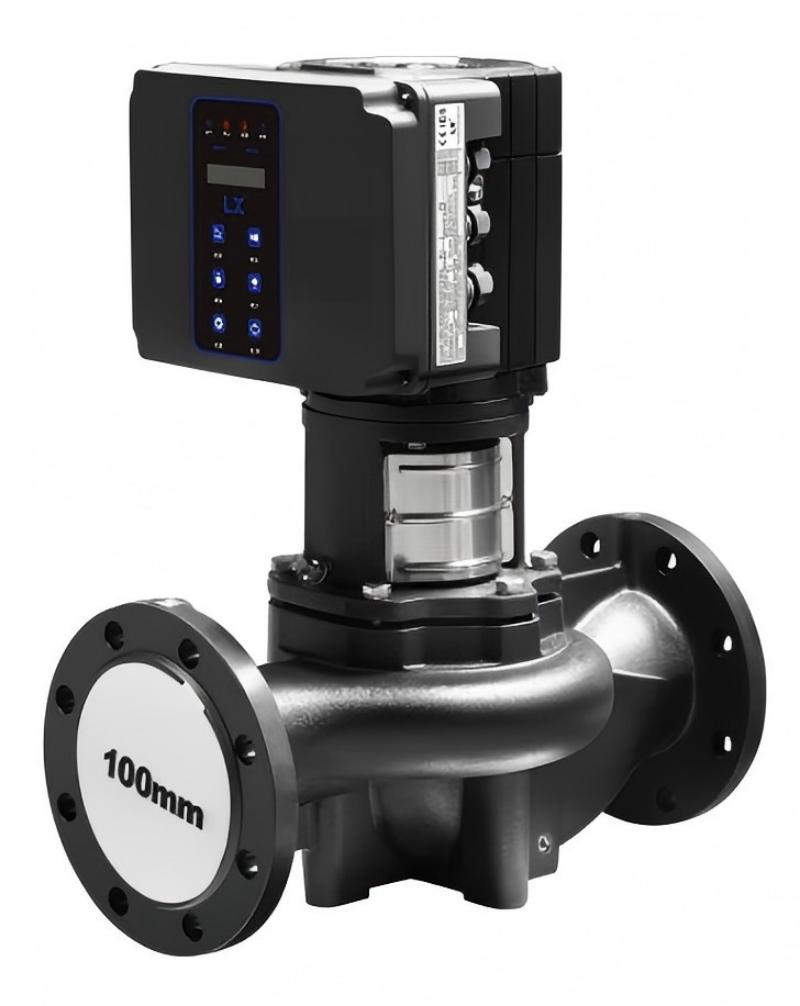

3. TDE Series Intelligent Permanent Magnet Variable Frequency Vertical Pipeline Centrifugal Pump: Features an integrated variable frequency controller, a vertically installed pipeline design for easy installation, and a top-accessible design for convenient maintenance. With power ratings of 0.75–30 kW, flow rates of 6–125 m³/h, and head capacities of 9–85 m, it is suitable for applications such as air conditioning circulation and pipeline pressurization.

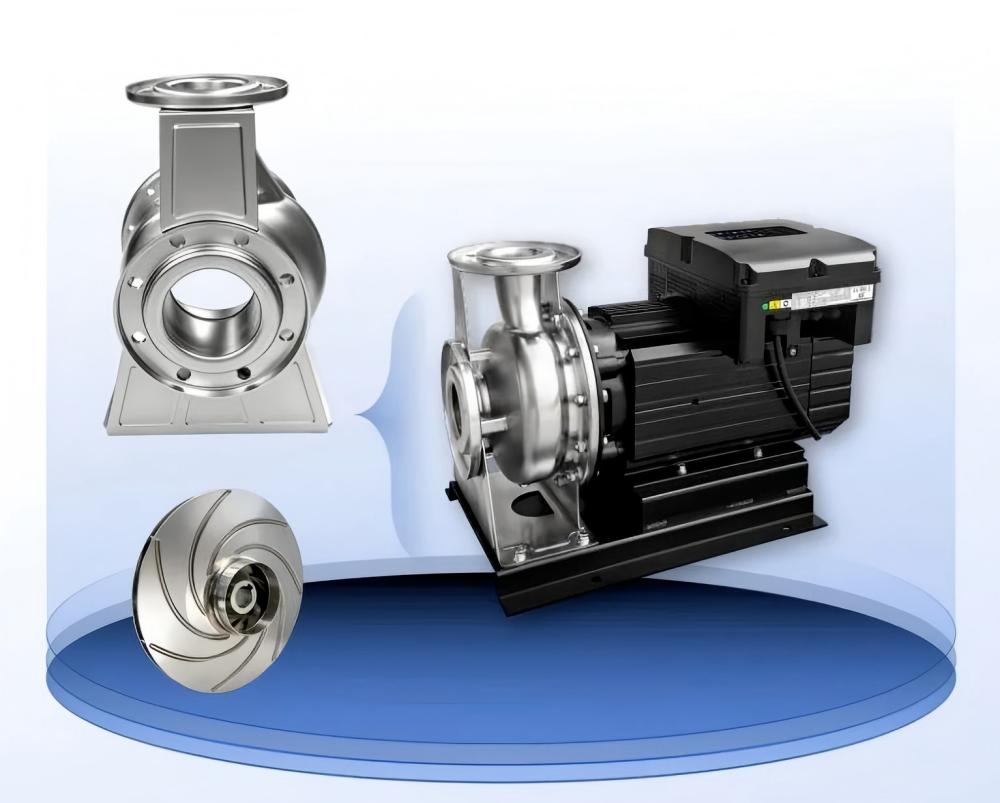

4. CABE Series Horizontal Intelligent Permanent Magnet Variable Frequency Pump: Its flow components are fabricated by stamping and welding stainless steel plates, resulting in a pump weight 30–40% lighter than traditional cast ISW pumps, with easy installation and uncompromised performance. Operating within a power range of 1.1–90 kW and delivering flow rates from 12.5 to 320 m³/h (up to 450 m³/h), the pump has a head of 13–68 m, fully replacing conventional cast ISW electric pumps for more energy-efficient and environmentally friendly operation.

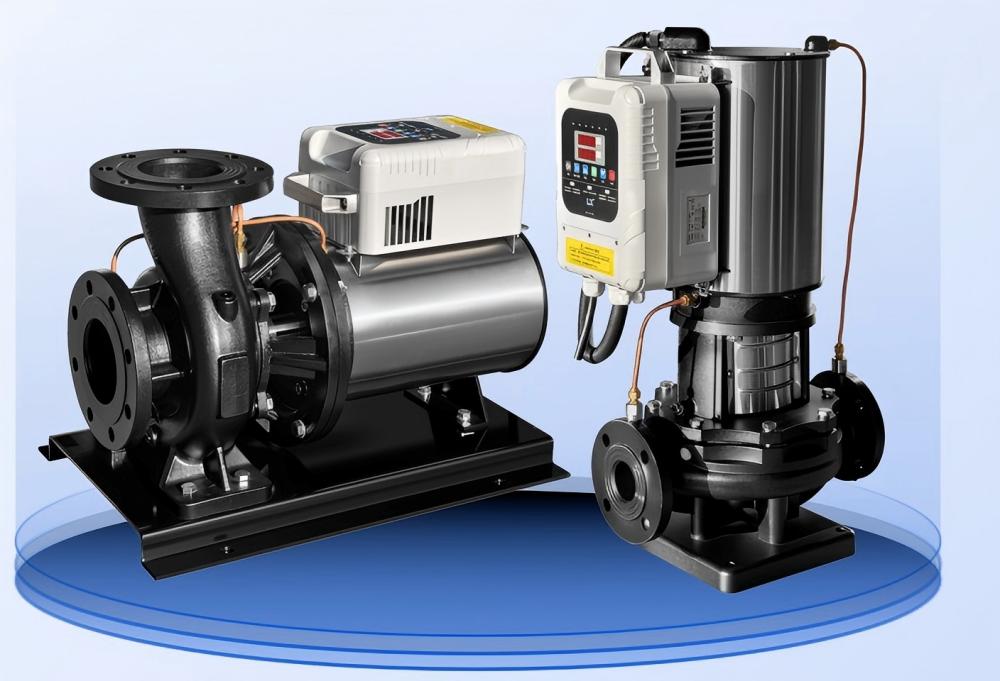

5. The TDSE/ISWSE series permanent magnet variable-frequency water-cooled vertical and horizontal pipeline centrifugal pumps utilize water cooling for motor cooling, offering significantly superior heat dissipation efficiency compared to air cooling, low operating temperature rise, and the capability for prolonged uninterrupted stable operation. These pumps feature low noise levels, minimal vibration, strong overall sealing performance, and excellent resistance to dust, moisture, and high temperatures. They are designed to operate under harsh conditions with slow motor insulation aging and extended service life. With a compact structure and high protection rating, they range in power from 0.75 kW to 37 kW, deliver flow rates of 6–125 m³/h, and provide head capacities of 9–85 m, making them ideal for high-power water supply and industrial circulation applications.

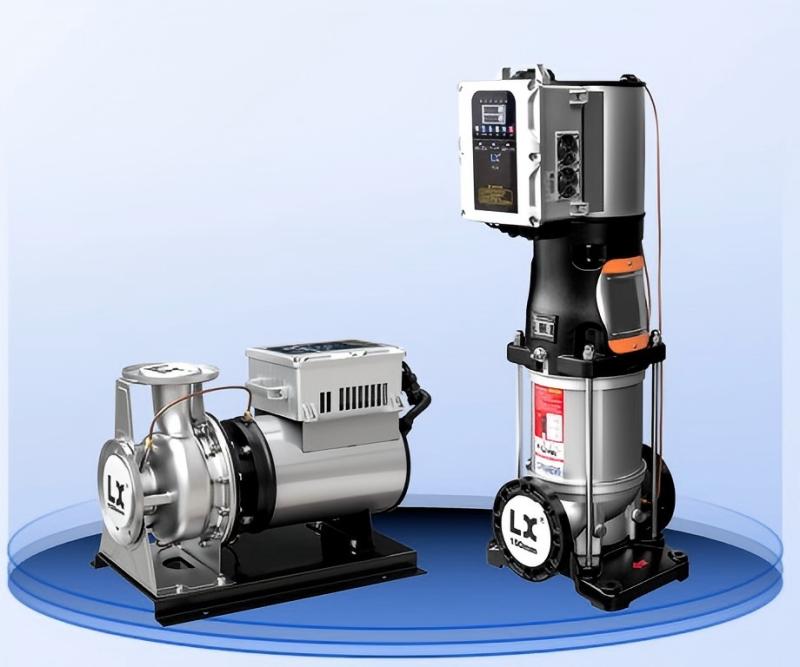

6. The CRNSE and CABSE series of permanent magnet variable-frequency water-cooled vertical and horizontal stainless steel centrifugal pumps employ the core technology of water-cooled permanent magnet motors, eliminating traditional air-cooling designs for faster heat dissipation, lower temperature rise, and noise-free operation without fan loss. Their high-efficiency permanent magnet drive delivers exceptional energy savings, complemented by a fully stainless steel corrosion-resistant pump body that ensures durability and resistance to corrosion. With a compact structure and high protection rating, their overall performance far surpasses that of conventional pumps.

Basic parameters of the vertical pump:   -Rated power: 0.37 kW to 37 kW   -Matching motor: IE5 intelligent permanent magnet variable-frequency water-cooled motor   -Rated flow rate: 1–320 m³/h   -Rated head: 11–250 m   -Inlet/outlet diameters: DN32–DN150

Basic parameters of horizontal pumps:   -Rated power: 1.1 kW to 37 kW   -Rated flow rate: 12.5–320 m³/h   -Rated head: 13–68 m   -Inlet/outlet diameters: DN50–DN150

As energy conservation and consumption reduction have become essential requirements in the manufacturing sector, Lingxiao Pump Industry's independently developed IE5 permanent magnet synchronous integrated motor delivers eight core advantages that drive a new era of green and energy-efficient industrial solutions. It addresses industry challenges associated with traditional motors—high power consumption, limited intelligence, and elevated operational and maintenance costs—effectively achieving high efficiency at an affordable price. As stated by Lingxiao Pump Industry's leadership: "We avoid producing flashy but impractical products; every technological upgrade is designed to resolve real-world challenges faced by customers." The IE5 permanent magnet variable-frequency motor serves not only as a fundamental product for implementing green production practices but also represents the mainstream direction for evolution and upgrading within the motor industry.

​
