unstable pressure in park & farmland irrigation? analysis of constant-pressure irrigation pumping package with water tank

Engineering professionals engaged in landscape design, modern agriculture, and industrial park development often encounter such issues:

Large-scale greening, nurseries, and park sprinkler irrigation involve concentrated water usage periods, significant fluctuations in water supply flow, and unstable pipeline water pressure. Distant sprinklers experience insufficient water output, while nearby areas suffer from excessive pressure that damages vegetation. If fragmented water pumps and storage tanks are used, the equipment arrangement becomes disorganized, lacks automatic pressure stabilization control, and requires dedicated personnel to manage operation and shutdown.

                                                                        Pressure surges and drops                                        Uneven Sprinkler Atomization                                      Incomplete Water Coverage

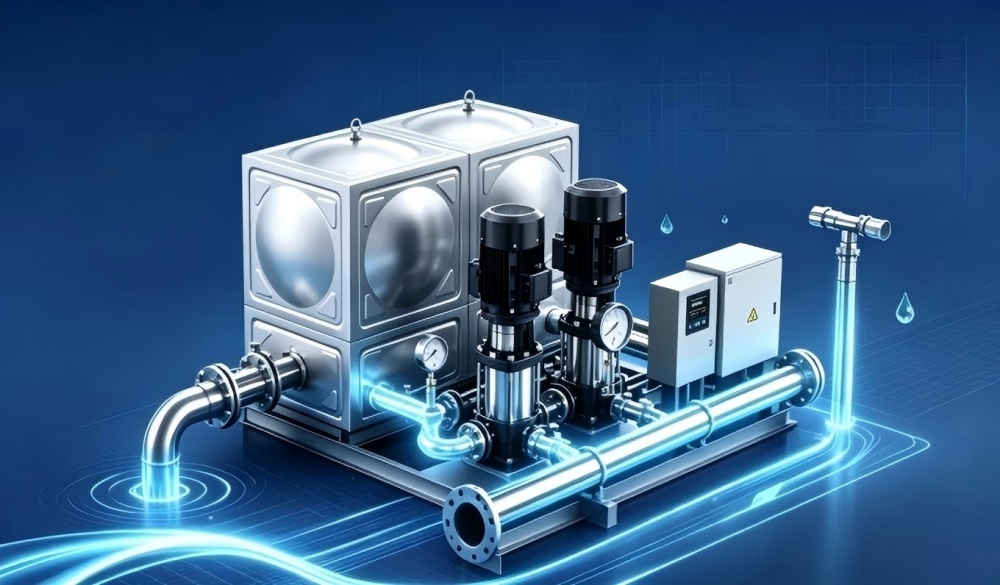

Integrated pump room with water tank and constant pressure irrigation, specifically designed for landscape greening, municipal green belts, agricultural parks, and large-scale factory spray irrigation scenarios. The entire equipment is integrated with a stainless steel water storage tank, a variable frequency centrifugal pump set, a voltage stabilization control system, pipeline valves, and an integrated base. It is pre installed and debugged in the factory, and only needs to be connected to the water source and irrigation pipe network on site.

1. Core advantages of integrated pump room for constant pressure irrigation

⑴  Variable frequency constant pressure water supply

Automatically adjust the speed according to the demand for irrigation water, maintain stable pressure in the pipeline network throughout the day, and ensure even water discharge from far and near nozzles to avoid uneven irrigation caused by pressure imbalance.

⑵  Integrated water storage tank

Equipped with a built-in water storage unit, it can buffer the problem of insufficient water supply from the water source, ensure continuous water supply during peak irrigation periods, and adapt to municipal intermittent water supply and well water intake scenarios.

⑶ Automatic timed irrigation function

The electronic control system supports setting multiple time periods for timed start stop, achieving unmanned irrigation and significantly reducing manual management costs.

 ⑷ Modular integration, easy installation

The water tank, pump unit, and control system are integrated into the factory as a whole, which shortens the construction period and ensures a neat and standardized layout compared to on-site separate assembly.

⑸  Flexibly expand redundant pump units

Large flow projects can be equipped with one in use and one backup pump set, with automatic switching in case of a single failure, ensuring uninterrupted green irrigation.

2、 Key points of project selection

⑴ Calculate the total irrigation area, number of nozzles, and determine the hourly required water supply flow rate;

⑵ Calculate the required water supply head based on the height difference of the farthest spray point and pipeline losses;

⑶ Distinguish water source types: municipal tap water/well water, and configure targeted filtration devices;

⑷ Determine the effective capacity of the supporting water tank based on the peak water consumption for irrigation.

3、 Industry selection avoidance reminder

❌ Only selecting a water pump without a water storage tank will prevent continuous irrigation when the water source is cut off or the water supply is insufficient;

❌ Using a fixed frequency water pump, the water pressure fluctuates greatly, and remote spraying cannot achieve irrigation effect;

❌ Neglecting water quality issues and not pre filtering can easily cause clogging and wear of the nozzle and pump body.

Constant pressure irrigation integrated pump room, suitable for municipal greening, industrial parks, and agricultural base landscape spraying projects. Supporting the supply of standard models, customized according to site size and irrigation parameters, providing scheme design, on-site survey, and equipment debugging supporting services.
